Nitrogen is a vital industrial gas used across many sectors, from food packaging and electronics to pharmaceuticals and metal processing. Among the various methods of producing nitrogen on-site, Pressure Swing Adsorption (PSA) and membrane separation are two of the most commonly used technologies.
This article highlights the main differences and similarities between these two nitrogen generation methods and provides a general insight into how on-site systems function.

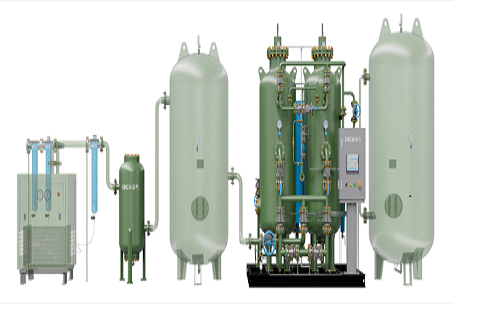

Pressure Swing Adsorption (PSA) technology utilizes the concept of selective adsorption to isolate nitrogen from ambient air. The system typically includes two separate vessels filled with a material known as carbon molecular sieve (CMS). This material has the unique ability to adsorb oxygen, moisture, and trace gases while allowing nitrogen molecules to pass through.
In a PSA system, compressed air is directed into the first vessel, where oxygen and other unwanted gases are captured by the CMS. The nitrogen-enriched gas exits the system for storage or immediate use. Once the first vessel reaches its adsorption capacity, it undergoes a regeneration process using nitrogen from the second vessel, which simultaneously begins the adsorption cycle.
The two vessels operate in a cyclic manner, ensuring a continuous supply of high-purity nitrogen.
Membrane nitrogen generation operates based on the principle of selective gas permeation. This process uses a semi-permeable membrane that enables certain gas molecules to pass through more readily than others, based on their size and diffusion properties.
In this system, compressed air is introduced to one side of a bundle of hollow-fiber membranes. Gases such as oxygen, carbon dioxide, and water vapor—which have smaller and faster-moving molecules—permeate through the membrane more quickly and are vented as exhaust. Nitrogen, being slower to permeate, remains on the other side of the membrane and is collected as the product gas. This nitrogen-enriched stream can then be stored or directed into the application that requires it.
PSA nitrogen generators are generally more substantial in size and heavier in construction. This is primarily due to the inclusion of pressurized adsorption vessels, as well as numerous mechanical components such as valves and actuators. These systems often require a programmable logic controller (PLC) to automate and coordinate the switching between adsorption and regeneration cycles.
In contrast, membrane-based systems are more compact and lightweight. They do not rely on pressurized vessels filled with adsorbent material, nor do they contain many moving parts. This makes membrane systems a popular choice for portable or space-constrained applications, particularly where mobility and simplicity are critical.
When it comes to gas purity, PSA systems offer a broader and higher range of nitrogen concentrations. Typical PSA units can deliver nitrogen with purities ranging from 95% all the way up to 99.999%, making them suitable for demanding applications that require ultra-high purity levels.
Membrane systems, on the other hand, are most effective within the 95% to 99% purity range. While suitable for many general industrial uses, they are not ideal for operations that demand extremely high nitrogen purity.
For applications requiring nitrogen with a purity above 98%, PSA systems tend to be more energy-efficient and cost-effective over time. Their ability to produce high-purity gas without excessive energy consumption makes them a preferred option for long-term industrial use.
Membrane systems may be more efficient at lower purity levels and are generally less expensive to maintain due to fewer moving parts and simpler operation.
PSA systems are more vulnerable to moisture than membrane systems. The carbon molecular sieve (CMS) used in PSA units can be negatively affected by elevated humidity levels. Excess moisture in the incoming air can lead to a reduction in nitrogen purity and flow rate.
Over time, prolonged exposure to high moisture content may cause irreversible damage to the CMS, reducing the efficiency and lifespan of the system.
Membrane-based systems offer a bit more resilience when it comes to moisture. Short-term exposure to higher humidity levels may temporarily reduce nitrogen output or purity, but in many cases, the membrane performance recovers once the moisture is eliminated.
However, extended exposure to excessive moisture can still degrade membrane fibers and compromise system efficiency.
Oil contamination poses a serious threat to both PSA and membrane nitrogen generators. If oil from the air compressor or other sources enters the system, it can cause permanent and irreversible damage.
In PSA systems, oil degrades the CMS material.
In membrane systems, it coats the fibers and blocks gas separation.
In both cases, performance drops sharply and may require costly repairs or complete system replacement.
Preventing oil ingress is critical—proper filtration and maintenance of upstream compressor systems is essential to ensure long-term reliability of any nitrogen generator.
The long-term performance of nitrogen generators depends heavily on the specific technology used and the quality of maintenance provided.
For membrane nitrogen generators, the main factor affecting longevity is membrane aging. Over time, the performance of the membrane fibers will naturally decline, leading to a gradual reduction in nitrogen output and purity.
However, with proper care—including regular replacement of air filters and adherence to maintenance schedules—a membrane system can continue operating effectively for 10 years or more.
PSA nitrogen generators generally offer a longer service life compared to membrane systems. The carbon molecular sieve (CMS) used in PSA units does not inherently degrade with time, provided it is kept free from contaminants such as moisture and oil.
With routine maintenance and clean, dry, oil-free compressed air, PSA systems can remain efficient and reliable for 20 years or longer.
Selecting between PSA and membrane nitrogen generators depends largely on your specific application needs:
PSA systems are better suited for industries that require ultra-high purity nitrogen and long-term operational efficiency.
Membrane systems are ideal where moderate purity is acceptable and space-saving, low-maintenance solutions are preferred.
Both technologies offer reliable on-site nitrogen generation when properly maintained, reducing dependency on bulk nitrogen deliveries and offering significant cost savings over time.
